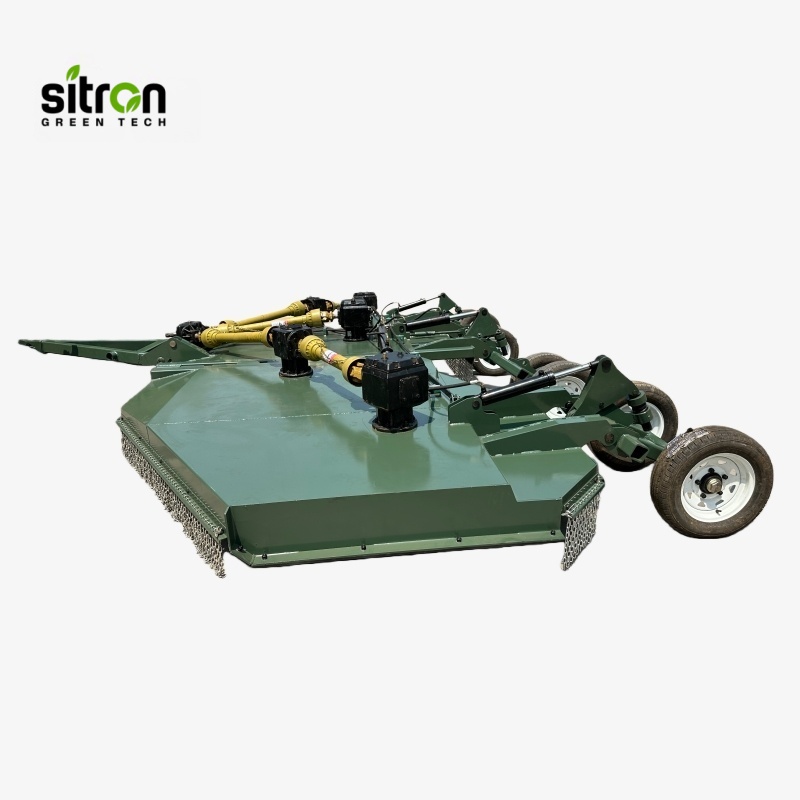

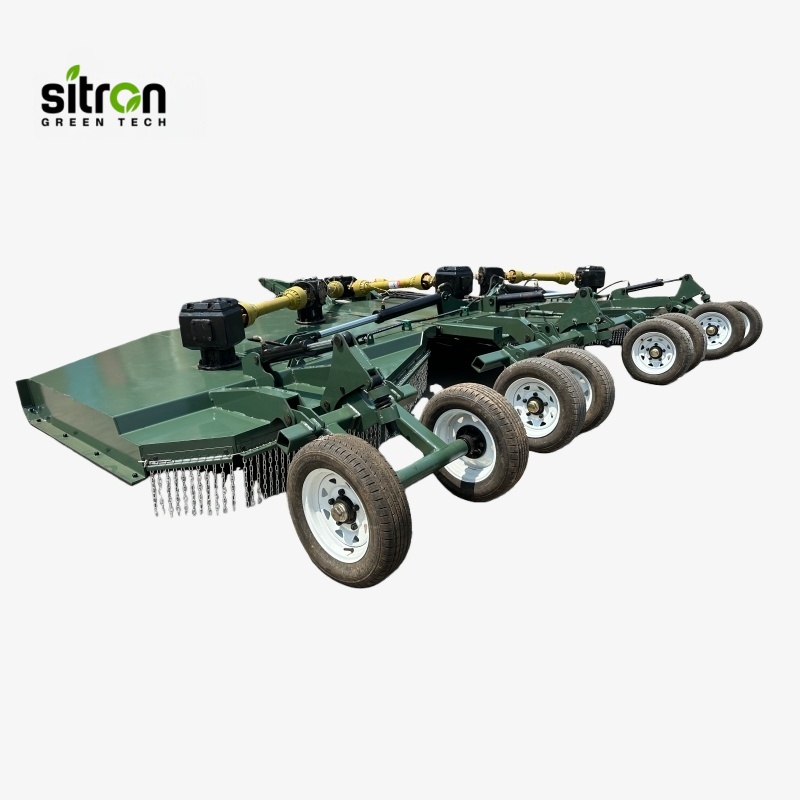

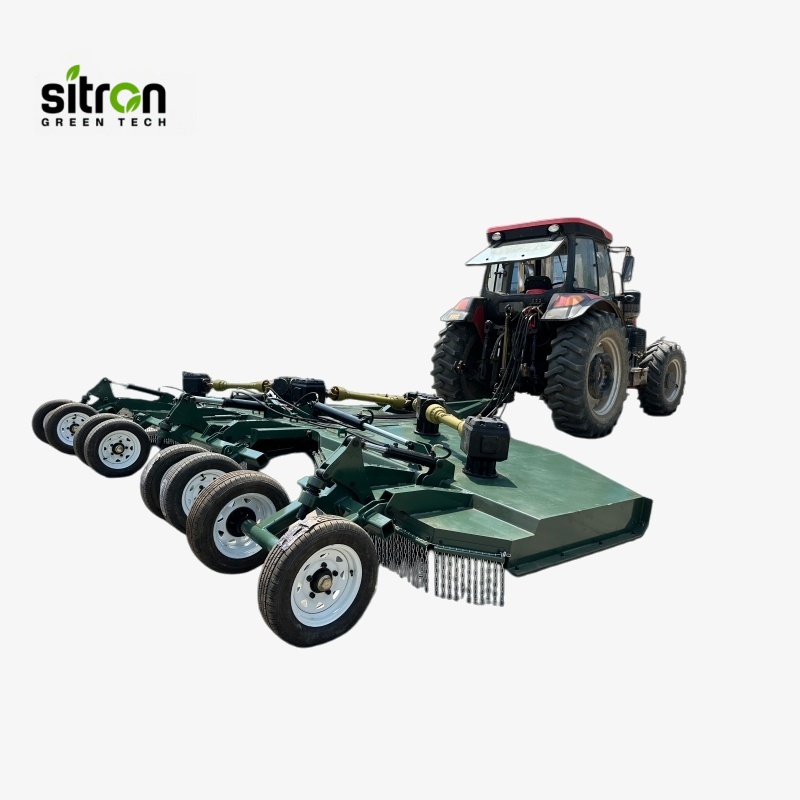

3.5M/4.5M/6M Trailed Folding Wing Mower

Short Description:

A Trailed Folding Wing Mower is a high-capacity mowing system designed for efficient cutting of large areas such as pastures, roadside verges, and extensive rural properties. As a “trailed” implement, it is towed behind a tractor, drawing power from the tractor’s PTO (Power Take-Off) shaft. Its most distinctive feature is the set of two or more “wings” – cutting decks – that hydraulically fold upward and inward for transport.

Send email to us

Product Detail

Product Tags

Product Description

Product Material
1. The whole machine uses thickened materials, making it sturdy, durable, and long-lasting.
2. The blades use thickened materials, making them wear-resistant and long-lasting.
3. The support wheels use widened large tires, providing excellent load-bearing support.
4. Utilizes a central gearbox drive to power the side gearboxes.
5. High-quality hydraulic cylinders are selected to enhance reliability.
Product Features
Primarily suitable for mowing operations, clearing, renovation, and improvement of uneven pasture land in orchards, grasslands, airports, and shrublands. The machine features a reasonable structure, sturdiness, durability, ease of use, simple maintenance, adjustable cutting height, good operational performance, and high cost-effectiveness. It is an ideal agricultural machine for mowing and clearing pastures.

Parameters

Trailed Folding Wing Mower
Model	3.5m Mower	4.5m Mower	6m Mower
Brand	Sitron	Sitron	Sitron
Total Weight	1650kg	1800kg	2440kg
Overall Dimensions	48004000600	49004900650mm	4.8m * 6.5m * 0.9m
Folded Wing Dimensions	480016001500	490024002000mm	4.8m * 2.75m * 3m
Tire Quantity & Model	165/70R13 (6 units)	165/70R13 (6 units)	165/70R13 (8 units)
Cutting Width	3.5 meters	4.5 meters	6 meters
Required Power	100-150 HP	100-150 HP	180 HP or above Four-wheel Tractor
Operation Mode	Trailed	Trailed	Trailed
