Product Description
The remote-controlled tracked rotary tiller is a powerful and versatile agricultural machine designed for efficient soil preparation in challenging conditions. By utilizing a robust tracked chassis, it delivers superior traction and stability on slopes, wet ground, and uneven terrain where conventional wheeled equipment would struggle. Its core function is to break up, turn over, and aerate the soil using its rotating blades, creating a perfect seedbed.
The key innovation is its remote-control operation, which allows the user to guide the machine from a safe distance. This not only enhances operator safety by removing them from potential hazards like debris, dust, and rough ground but also significantly improves accessibility, enabling the tiller to work in confined or difficult-to-reach areas. It is an ideal solution for professional landscapers, farmers with small to medium plots, and vineyards or orchards, combining raw tilling power with precise, operator-friendly control.
Parameters
| Diesel remote-controlled tracked rotary tiller | ||
| Model | DRT-RT48100 | |
| Brand | KASHIN | |
| Engine | 1100F/P | |
| Rated Power | 13KW | |
| Rated Speed | 3000r/min | |
| Main Transmission Type | Direct Shaft Drive | |
| Main Clutch Type | Friction Disc | |
| Travel Power | Motor Drive | |
| Drive Motor | 48V 800W× 2 | |
| Battery Specification | 48V 23Ah Battery+Range Extender | |
| Range Extender Generator | 55V 75A DC Generator | |
| Overall Dimension | 1780 × 920 × 740mm | |
| Weight | 450KG | |
| Cutter Shaft Speed | 2600r/min | |
| Number of Weed Crushing Blades | 48 Toothed Blades(3pcs/set, 16sets) | |
| Weed Crushing Working Width | 800mm | |
| Stubble Height | 20-80mm | |
| Weed Crushing Height | 50-2000mm | |
| Rotary Tilling Axle Speed | 360r/min | |
| Number of Rotary Tilling Blades | 24 | |
| Rotary Tilling Width | 900mm | |
| Rotary Tilling Depth | 130-250mm | |
| Number of Ditching Blades | 10 | |
| Ditching Width | 260mm | |
| Ditching Depth | 200-300mm | |
| Remote Control Distance | 400m | |
| Lifting/Lowering | Remote-controlled Hydraulic Cylinder | |
| Travel Speed | 35-50 meters/minute | |
| Fuel Consumption | 1.5L/H | |
| Fuel Tank Capacity | 5.5L | |
| www.kashinturf.com | www.kashinturfcare.com | ||
Video
https://youtu.be/mL-yBm7j0_8?si=DeSszWO2I3Sb1aXh

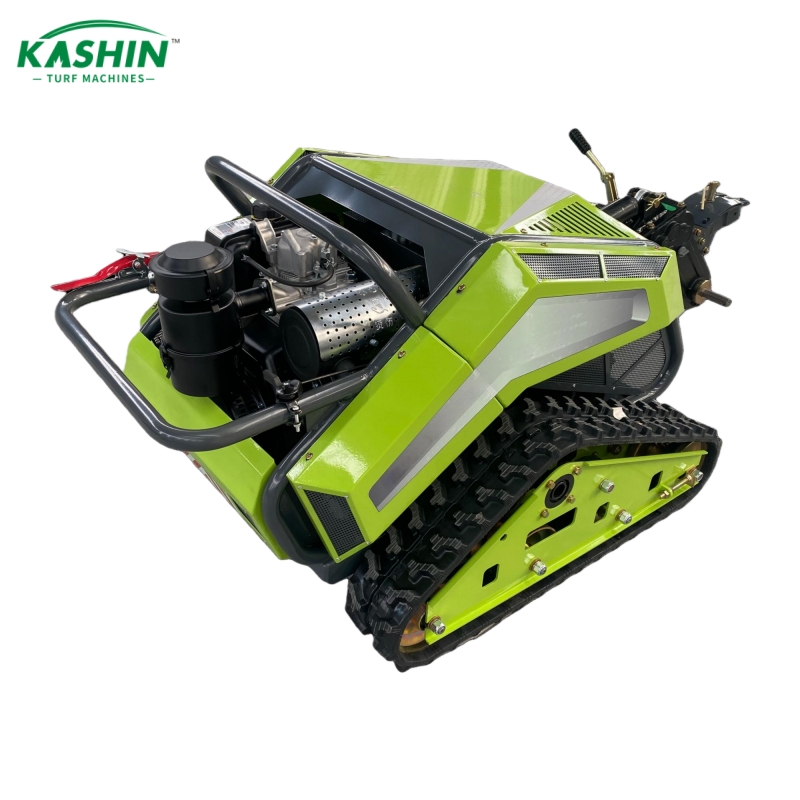

Product Display
