Product Description
Skid steer loader is a kind of multi-purpose construction machinery,with cilerent models with dilerent conligurations, suitable lor dillerentworking envronments. Mainly highways, construcion, plant workshops, warehouses, docks, ship decks, cabin clearance, municipal, iandscaping,farms property, and winter snow clearance. hrough the quick change device can be replacad by a variety of dliferent accessory devices, so that the roadsnow, shoveling, stacking,lifting, digging, diriling, crushing, grabbing, pushing,soiloasaning, ditching, road miling, road claning,road compactian,mlxling and other operaitlons,ls a wide range of applcatlons, strong versatllty ot the construction machlnery
Parameters

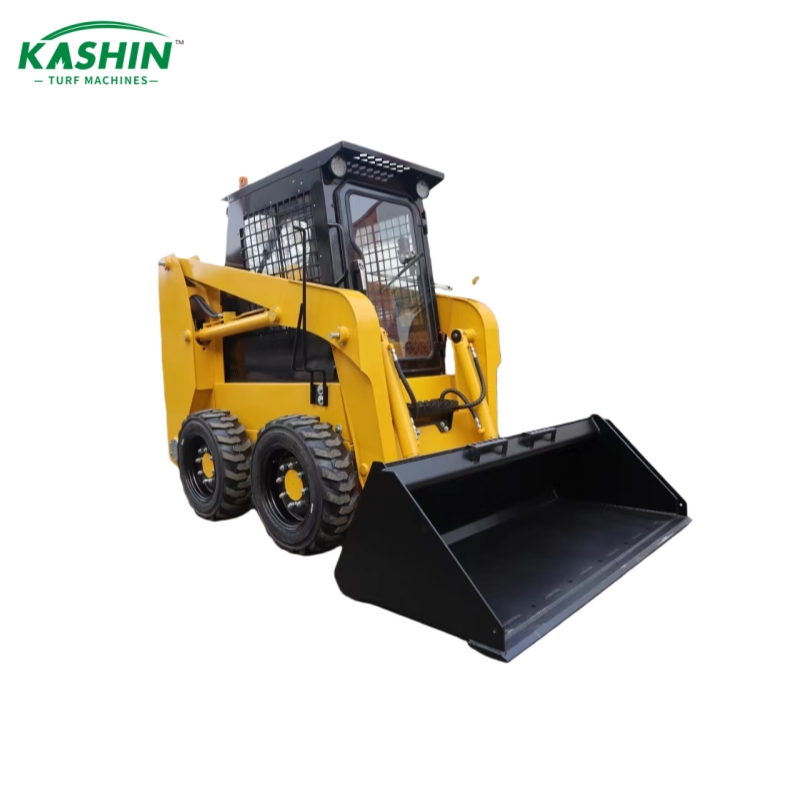

| JC35 Skid Steer Loader | ||
| Model | JC35 | |
| Operating load (kg) | 500 | |
| Max Speed (km/h) | 10 | |
| Rated flux (L/min) | 60 | |
| High Flow Flux (L/min) | / | |
| Tire(track) model | 8.5-16.5 | |
| Rated power (Kw) | 37 | |
| Fuel tank capacity (L) | 60 | |
| Structure weight (kg) | 2600 | |
| Bucket capacity (m³) | 0.3 | |
| A. Overall operating height (mm) | 3300 | |
| C. Height to top of cab (mm) | 2000 | |
| E. Length without bucket（mm） | 2300 | |
| F. Overall length with bucket(mm) | 2950 | |
| H. Dumping height(mm) | 2000 | |
| T. Width (mm) | 1350 | |
| U. Bucket width (mm) | 1400 | |
| D. Height to bottom of level bucket(mm) | 2558 | |
| G. Dumping angle at maximum height(°) | 40 | |
| B. Height to bucket hinge pin (mm) | 2725 | |
| I. Dumping reach(mm) | 790 | |
| J. Rollback o bucket on ground(°) | 30 | |
| K. Rollback of bucket at full height(°) | 104 | |
| L. Wheelbase(mm) | 897 | |
| M. Ground clearance(mm) | 140 | |
| N. Angle of departure(°) | 20 | |
| O. Front turning radius without bucket(mm) | 1098 | |
| P. Front tuning radius(mm) | 1760 | |
| Q. Rear tuning radius(mm) | 1296 | |
| R. Rear axle to bumper (mm) | 964 | |
| S. Tread width (mm) | 1080 | |
