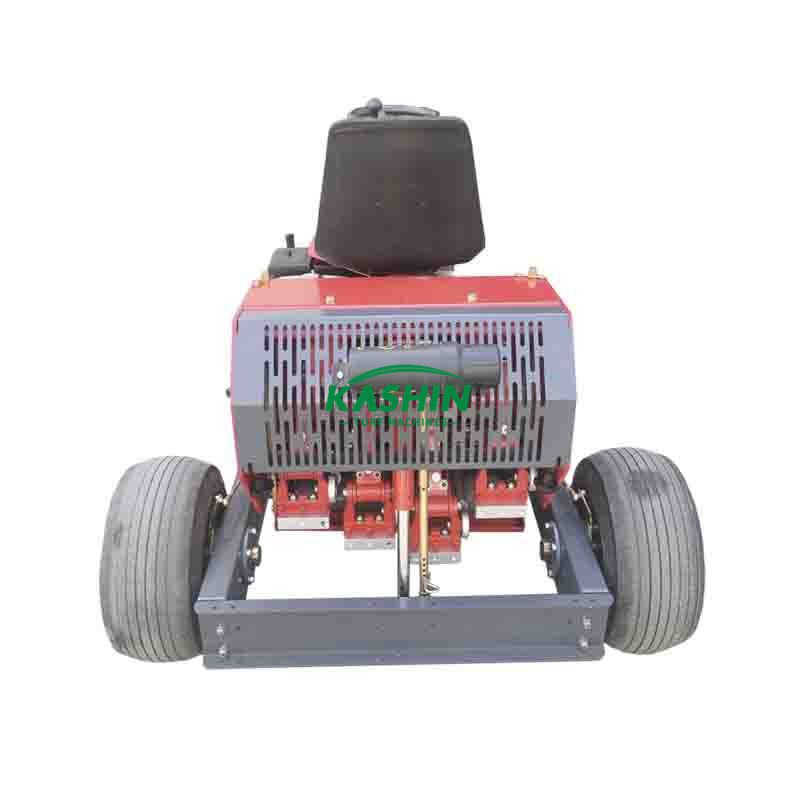

Design Features
During operation, the KASHIN DK80 turf aerator can be controlled in two ways - from the operator's seat or manually, using the control panel, which is located in front.
The DK80 turf aerator allows soil processing to a depth of 153 mm (6 inches).
Product Description
DK80 turf aerator Advantages:
- DK80 turf aerator has the ability to handle the most difficult areas.
- In the process of work, DK80 turf aerator performs lifting and cutting of the soil according to a parallelogram model.
- DK80 turf aerator has a small unit size.
- The presence of hydraulic drives significantly reduces labor costs for maintenance.
- DK80 turf aerator has increased maneuverability.
- DK80 turf aerator has low fuel consumption.
- DK80 turf aerator has high reliability.
DK80 turf aerator's Specifications
Model - Turf Aerator DK80
The width of the working body is 675 mm (0.675 m).
Coating processing depth - up to 150 mm (0.15 m).
The step between the produced holes is 55 mm (0.055 m).
Productivity - from 530 to 2120 m2/hour.
The total weight of the device is 510 kg.
Engine type - Honda13 hp with electric starter.
Required vehicle – not required.
Parameters
|
KASHIN DK80 Turf Aerator |
|
|
Model |
DK80 |
|
Brand |
KASHIN |
|
Working Width |
31” (0.8m) |
|
Working Depth |
Up to 6” (150 mm) |
|
Hole Spacing Side-to-Side |
2 1/8” (60 mm) |
|
WorKing efficiency |
5705--22820 sq.ft / 530--2120 m2 |
|
Max pressure |
0.7 bar |
|
Engine |
Honda 13hp,electric start |
|
Maximum Tine Size |
Solid 0.5” x 6” (12 mm x 150 mm) |
|
Hollow 0.75” x 6” (19 mm x 150 mm) |
|
|
Standard Items |
Set solid tines to 0.31” x 6” (8 mm x 152 mm) |
|
Structure Weight |
1,317 lbs (600 kg) |
|
Overall Size |
1000x1300x1100 (mm) |
|
www.kashinturf.com |
|
You can buy a DK80 self-propelled turf aerator to keep sports fields in optimal playing condition in our company. We produce and offer high-quality equipment over 10 years, and have been widely used in many countries of the world.
